Seaward KD1E/33D HV Potential Indicator
$ 92.97

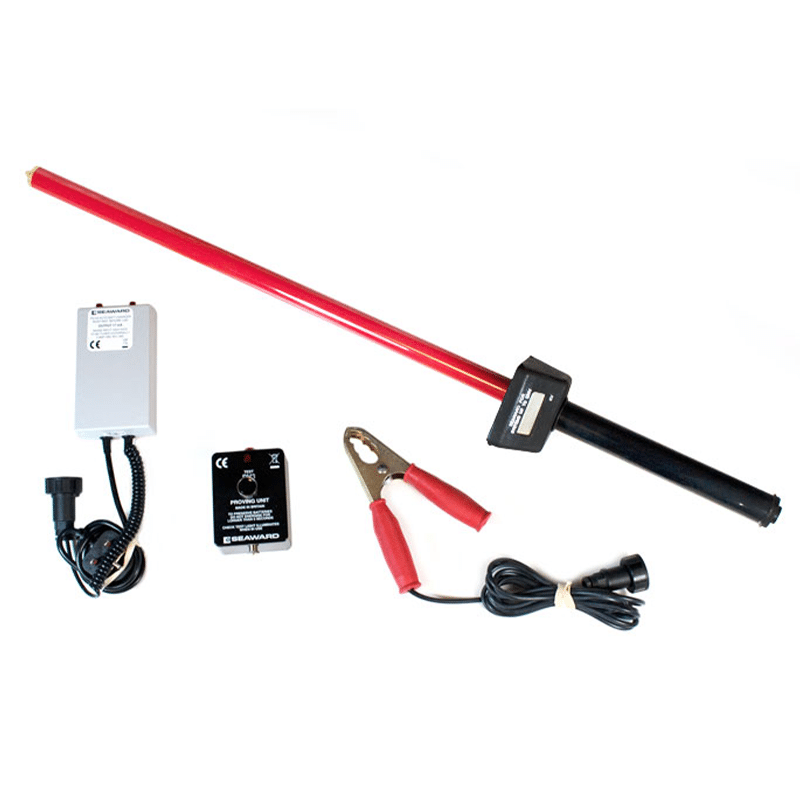

- DescriptionSeaward KD1E/33D HV Potential Indicator – 109A911Product Description: The Seaward KD1E/33D is a digital high voltage (HV) potential indicator designed to measure voltage or detect the presence of voltage on earthed neutral systems up to 33kV. This versatile instrument features an integral rechargeable battery, which powers the digital display, allowing for precise voltage measurements. The indicator is ideal for applications where the measurement of voltage on earthed neutral electrical circuits is essential, offering a robust and portable solution for electrical professionals. Conforming to recommended creepage and safety standards, the KD1E/33D is equipped with high-grade PVC tubing and fully encapsulated resistor chains, ensuring long-lasting reliability. Supplied with a battery charger, a PH3 proving unit, and a bespoke carrying case, the Seaward KD1E/33D is designed for easy transport and operation.Key Features:Functions both as a potential indicator to detect voltage presence and as a voltmeter for precise voltage measurementsRobust housing with a clear digital display for easy reading of voltageNo switches for simple and reliable operationPowered by an integral rechargeable battery with a low battery indicator for monitoring power levelsSupplied with a battery charger, PH3 proving unit, and a bespoke carrying case for convenient storage and transportWhat’s Included:Seaward KD1E/33D HV Potential Indicator – 109A911Seaward PH3 Proving Unit – 112A912Bespoke Carry Case for the indicator and accessoriesInstructions for proper operation and safetyCalibration Certificate for product accuracy and reliabilitySeaward KD1E Comparison TableNeon IndicatorsDigital IndicatorsKD1EKD1E/19KD1E/19SKD1E/22KD1E/33KD1E/15DKD1E/33DMaximum System Voltage11kV19kV19kV22kV33kV15kV33kVMaximum Voltage to Earth6.6kV11kV11kV12.5kV19kV8.6kV19kVThreshold Voltage300V300V300V300V300VMeasuring Range0.00kV-8.6kV0.00kV-19.0kVResolution10V100VSensitivityAC/DCAC/DCAC OnlyAC/DCAC/DCAC/DCAC/DCCircuit Current (IEC 61234-2)2.3mA nominal @ 6.6kV0.7mA nominal @ 11kV0.9mA nominal @ 11kV3.5mA nominal @ 12.5kV1.1mA nominal @ 19kV0.5mA nominal @ 8.6kV1.1mA nominal @ 19kVDielectric Leakage Current (IEC 61234-2)7µA nominal @ 13.8kV11µA nominal @ 22.8kV12µA nominal @ 22.8kV12µA nominal @ 26.4k17µA nominal @ 40kV9µA nominal @ 18kV17µA nomina @ 40kVLength (mm)330330330665670600600Diameter (mm)25252525252525Handle Length (mm)10510510590250235235Hand Guard Height (mm)10510510590250235235Contact Electrode TypeDomedFlatFlatDomedFlatDomedDomed
