Seaward KD1E/22 HV Indicator to 22kV
$ 98.39

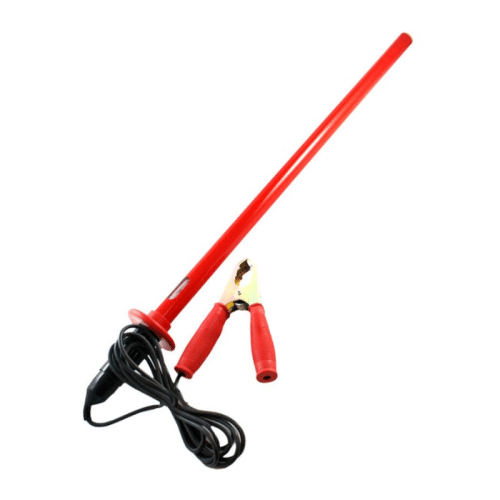

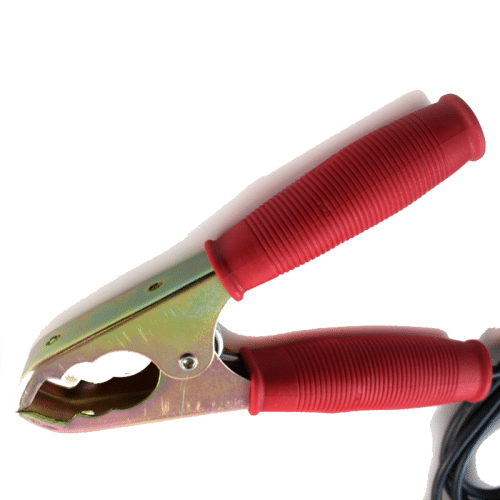

- DescriptionSeaward KD1E/22 HV Indicator to 22kV – 113A912Product Description:The Seaward KD1E/22 is a highly robust, portable HV AC/DC voltage indicator designed to confirm the presence of voltage on earthed neutral electrical circuits, ranging from 3kV to 22kV. This high-voltage potential indicator is engineered to meet the recommended creepage and safety standards, offering reliability and safety during operation. The KDIE/22 series features high-grade PVC tubing and fully encapsulated resistor chains, ensuring long-lasting durability in various environments. It is ideal for use in industrial applications and fieldwork, where the detection of high voltage is crucial for safety.Key Features:Duplicate neon indicators enclosed within shock-resistant sleeves to ensure maximum protection and visibilityPermanently connected earth cable for reliable groundingProtective hand guard to minimize the risk of electric shockDirect access to nearly all types of vertical or horizontal metal-clad switchgearConforms to UK Electricity Council Approval list G9 for trusted safety complianceWhat’s Included:Seaward KDIE/22 High Voltage Indicator – 113A912Carry Case for easy transportation and storageCalibration Certificate for product assurance and performance accuracyInstructions for proper handling and safety useSeaward KD1E Comparison TableNeon IndicatorsDigital IndicatorsKD1EKD1E/19KD1E/19SKD1E/22KD1E/33KD1E/15DKD1E/33DMaximum System Voltage11kV19kV19kV22kV33kV15kV33kVMaximum Voltage to Earth6.6kV11kV11kV12.5kV19kV8.6kV19kVThreshold Voltage300V300V300V300V300VMeasuring Range0.00kV-8.6kV0.00kV-19.0kVResolution10V100VSensitivityAC/DCAC/DCAC OnlyAC/DCAC/DCAC/DCAC/DCCircuit Current (IEC 61234-2)2.3mA nominal @ 6.6kV0.7mA nominal @ 11kV0.9mA nominal @ 11kV3.5mA nominal @ 12.5kV1.1mA nominal @ 19kV0.5mA nominal @ 8.6kV1.1mA nominal @ 19kVDielectric Leakage Current (IEC 61234-2)7µA nominal @ 13.8kV11µA nominal @ 22.8kV12µA nominal @ 22.8kV12µA nominal @ 26.4k17µA nominal @ 40kV9µA nominal @ 18kV17µA nomina @ 40kVLength (mm)330330330665670600600Diameter (mm)25252525252525Handle Length (mm)10510510590250235235Hand Guard Height (mm)10510510590250235235Contact Electrode TypeDomedFlatFlatDomedFlatDomedDomed
