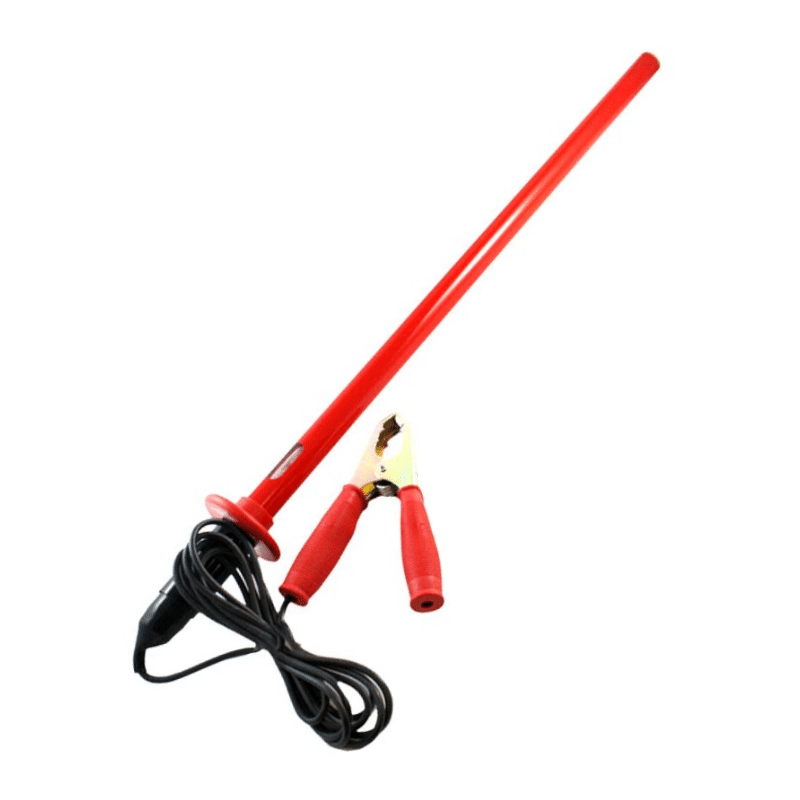

Seaward KD1E HV Indicator 1-11KV
$ 97.26
- DescriptionSeaward KD1E HV Indicator 1-11KV – 113A916Product Details:The Seaward KD1E High Voltage Indicator is a robust, portable AC/DC voltage indicator designed to confirm the presence of voltage on earthed neutral electrical circuits. It meets safety and design standards, ensuring maximum reliability in various electrical environments. Featuring high-grade PVC tubing and completely encapsulated resistor chains, the KD1E provides essential functionality for electrical safety. It is equipped with duplicate neon indicators housed within shock-resistant sleeves, and it comes with a permanently connected earth cable for added safety during use. Its design allows for direct access to nearly every type of vertical or horizontal metal-clad switchgear, making it versatile for a range of electrical tasks. The Seaward KD1E is also listed on the UK Electricity Council Approval list G9, further underscoring its compliance with industry safety standards. For optimal performance, Seaward recommends pairing the KD1E with the PH3 Proving Unit.Key Features:Dual neon indicators within shock-resistant sleevesPermanently connected earth cable for increased safetyHand guard for additional protection during useCompliant with recommended creepage and safety standardsHigh-grade PVC tubing for durabilityEncapsulated resistor chains for enhanced reliabilityDirect access to vertical and horizontal metal-clad switchgearUK Electricity Council Approval list G9Designed for use in AC/DC voltage testing on earthed neutral circuitsWhat’s Included:Seaward KD1E High Voltage Indicator – 113A916Carry CaseCalibration CertificateInstructions Seaward KD1E Comparison Table:Neon IndicatorsDigital IndicatorsKD1EKD1E/19KD1E/19SKD1E/22KD1E/33KD1E/15DKD1E/33DMaximum System Voltage11kV19kV19kV22kV33kV15kV33kVMaximum Voltage to Earth6.6kV11kV11kV12.5kV19kV8.6kV19kVThreshold Voltage300V300V300V300V300VMeasuring Range0.00kV-8.6kV0.00kV-19.0kVResolution10V100VSensitivityAC/DCAC/DCAC OnlyAC/DCAC/DCAC/DCAC/DCCircuit Current (IEC 61234-2)2.3mA nominal @ 6.6kV0.7mA nominal @ 11kV0.9mA nominal @ 11kV3.5mA nominal @ 12.5kV1.1mA nominal @ 19kV0.5mA nominal @ 8.6kV1.1mA nominal @ 19kVDielectric Leakage Current (IEC 61234-2)7µA nominal @ 13.8kV11µA nominal @ 22.8kV12µA nominal @ 22.8kV12µA nominal @ 26.4k17µA nominal @ 40kV9µA nominal @ 18kV17µA nomina @ 40kVLength (mm)330330330665670600600Diameter (mm)25252525252525Handle Length (mm)10510510590250235235Hand Guard Height (mm)10510510590250235235Contact Electrode TypeDomedFlatFlatDomedFlatDomedDomed
