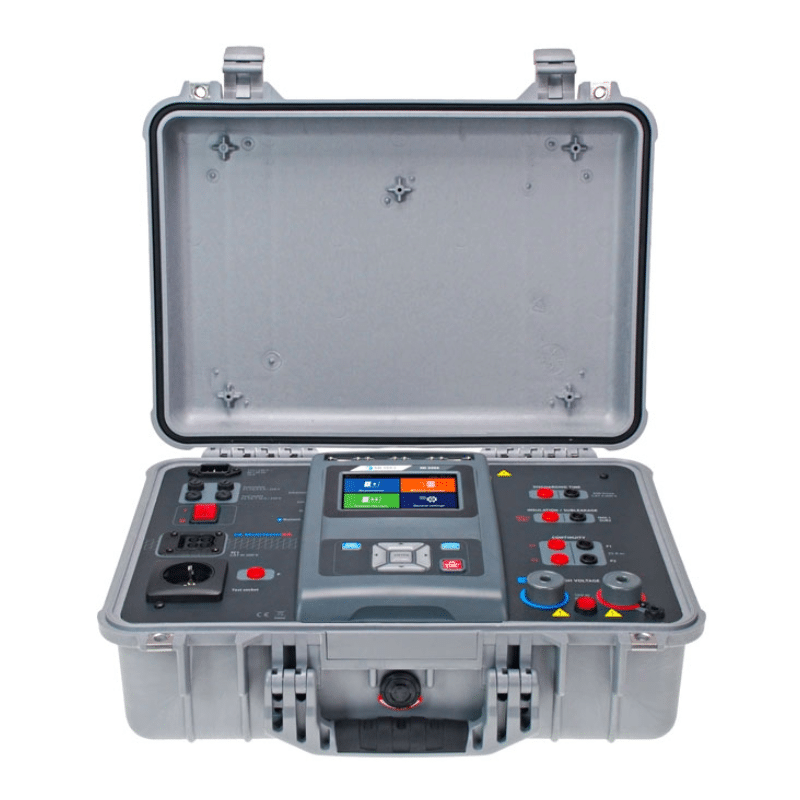

Metrel MI 3394 CE High Voltage Electrical Safety Multitester
$ 92.49
- DescriptionMetrel MI 3394 CE High Voltage Electrical Safety MultitesterProduct Details:The Metrel MI 3394 CE Electrical Safety Multitester is a versatile tool designed for verifying that electrical appliances and systems comply with CE electrical safety standards. It is compatible with TT, TN, IT, and 115V supply systems. The tester supports various tests and measurements, including AC/DC high voltage, continuity, insulation resistance, and discharge time. It measures four types of leakage currents: substitute, differential, touch, and PE leakage current. Additionally, it offers tests for power (P/S/Q), voltage, current, power factor (cosϕ), frequency, total harmonic distortion (ThdU, ThdI), and power factor (PF).Advanced features include high voltage testing at 5kV AC and 6kV DC, along with a four-wire continuity test that offers precision measurements with selectable current options (0.2A, 4A, 10A, 25A). The Metrel MI 3394 also facilitates earth/ground bond testing.The device features multiple test terminals for individual tests or automated test sequences, which can be conducted with a single socket using the optional CE A1460 test adapter. Data management is streamlined with built-in software, allowing for easy organization of saved results. Memory is expandable via a removable micro-SD card, with an 8GB card included, and support for up to 32GB.The tester offers three connectivity options—RS-232, Bluetooth, and USB—enabling communication with other devices for data transfer, remote control, and test program uploads. The results and menus are displayed on a 3.5” color LCD touchscreen, making operation intuitive and user-friendly. Despite its extensive capabilities, the MI 3394 remains portable with integrated handles for easy transport, ensuring robust performance without compromising ease of use.Key Features:Hi-pot high voltage test (5kV AC, 6kV DC)Four-wire continuity testing (0.2A, 4A, 10A, 25A)Insulation resistance testingDischarge time measurementLeakage current measurement (substitute, differential, touch, PE)System tests (power P/S/Q, voltage, current, cosϕ, frequency, ThdU, ThdI, PF)Micro-SD card slot with 8GB card included (supports up to 32GB)RS-232, USB, and Bluetooth connectivity3.5” color touchscreen displayMultiple test terminalsAuto-test sequence capabilitySuitable for TT, TN, IT, and 115V systemsIntegrated handles for portabilityAvailable Kits:Standard Set:MI 3394 CE MultiTesterXA2 x 5m HV test leads (without pistols)Continuity and insulation test leadsCrocodile clipsDischarge time cableMains cableAccessory bagCalibration certificateRS-232 and USB cablesCD with full instruction manualMetrel ES Manager BASIC licenseEuro Set:MI 3394 CE MultiTesterXAHV test pistols with 2m cablesContinuity and insulation test leadsCrocodile clipsDischarge time cableMains cableAccessory bagCalibration certificateRS-232 and USB cablesCD with full instruction manualMetrel ES Manager BASIC licenseLine Set:MI 3394 CE MultiTesterXACE Test adapter A 1460 with Tip Commander (2.5m)Barcode scanner A 1105Continuity and insulation test leadsCrocodile clipsDischarge time cableMains cableAccessory bagCalibration certificateRS-232 and USB cablesUSB isolator A 1521CD with full instruction manualMetrel ES Manager BASIC licenseLab Set:MI 3394 CE MultiTesterXABurn Link adapter A 1560HV test pistols with 2m cablesContinuity and insulation test leadsCrocodile clipsDischarge time cableMains cableAccessory bagCalibration certificateRS-232 and USB cablesCD with full instruction manualMetrel ES Manager BASIC licenseThe Metrel ES Manager software can be downloaded for free from the Metrel website.
